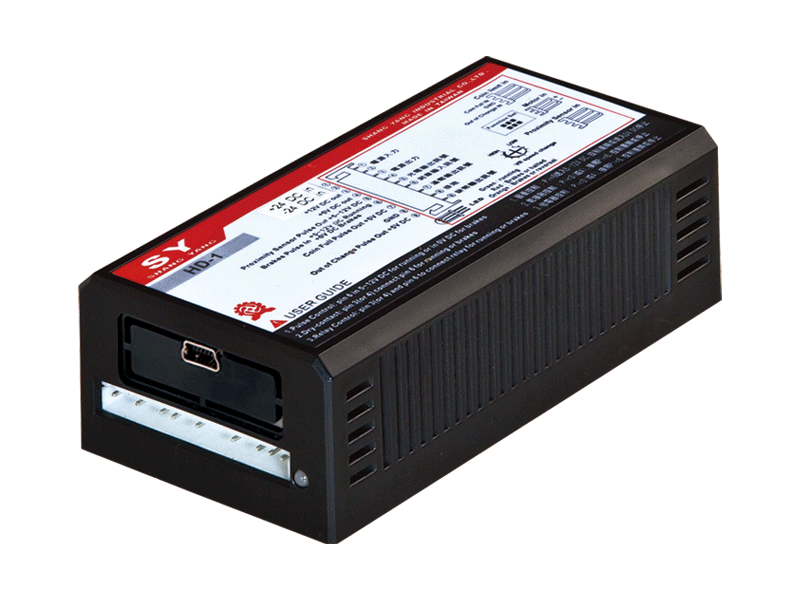

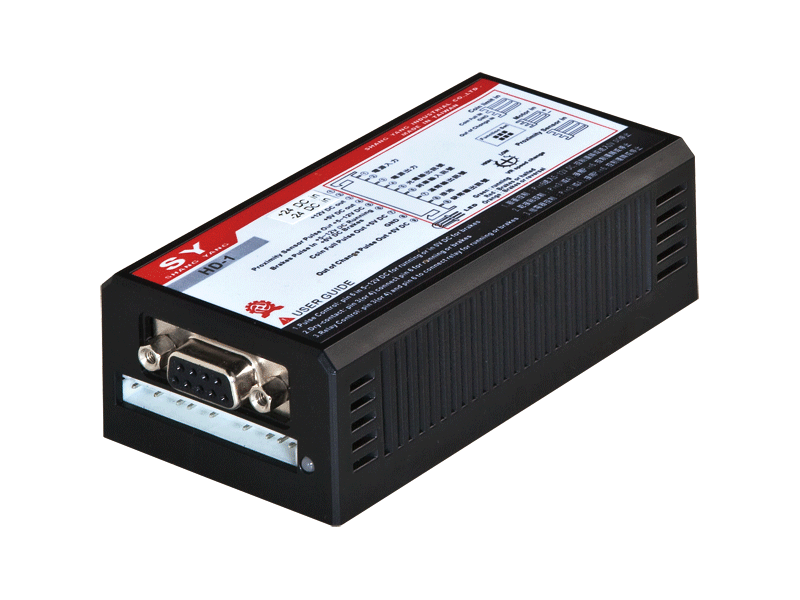

¡´Input power of 24VDC provided for controller, connected to a
computer via RS232¡BUSB port for performing control from the
computer.
¡´In-built RAM and Micro processor.
¡´Action and quantity of coin dispense is controlled by in-built
micro processor, the operation is triggered by an coin dispense
quantity setup without receiving optical-electrical signal and
brake control.
¡´Support real-time monitoring on quantity of coin to be dispensed,
quantity of coin to be stored, motor operation status and coin stuck
status.
¡´Support switch between computer control and manual control.
¡´Support compulsory operation instructions such as compulsory
operation and report on the quantity of dispensed coins and
compulsory operation stoppage.
¡´All major functions are identical with Model DH-1
¡´Reverse current protection, over current protection and polarity
reversal protection.
