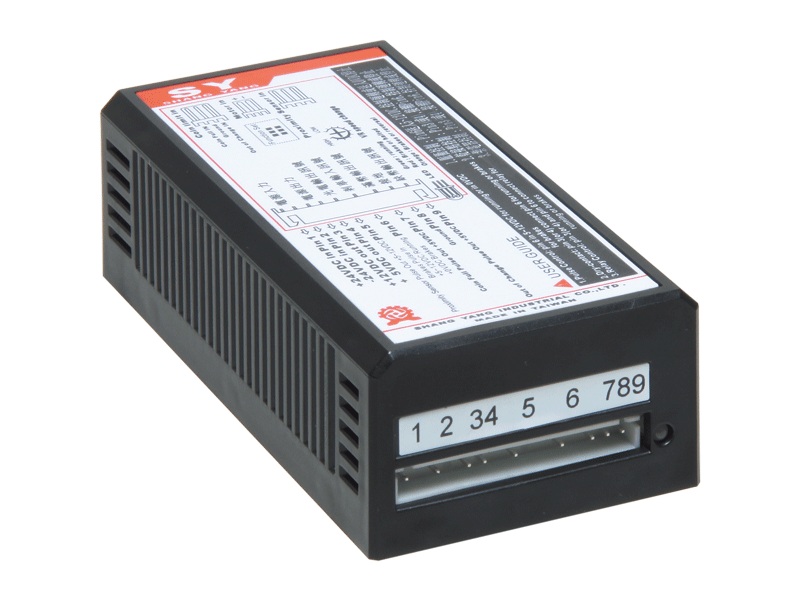

HOPPER CONTROL PACK | DH |
|
DH-1 |
|
|
|
 |
|
|
|
|
|
|
|
ˇ´In-built brake function. |
|
ˇ´In-built stop-reverse function. (reverse time 0.70sec, waiting time
0.35sec upon function termination) |
|
ˇ´We use soild state switch to signal control on operation and brake,
where Pin6 0VDC controls brake and 5-12VDC controls operation. (if
the motherboard signals used are opposite or alternative to the
above control signals, please contact salespersons of Shang Yang
Industrial Co. Ltd.) |
|
ˇ´In-built optical-electrical input and output function, Pin5
0VDC~12VDC. (the power of optical-electrical associated device is
provided by the controller) |
|
ˇ´In-built coin storage quantity detecting function (on full coins at
PIN7 and Low Coins at PIN9, with delay time 1.5sec) |
|
ˇ´In-built front end output +5VDC used for control dry contact and
relay. |
|
ˇ´Reverse current protection, over current protection and polarity
reversal protection. |
|
ˇ´Built-in a Knob for adjust motor speed |
|
|
|
