VH Series (AC/DC)
Last page / VHL Series (AC/DC)
VENDING HOPPER | VHL
Model  Coin Cup Extensio
VHL Type H1

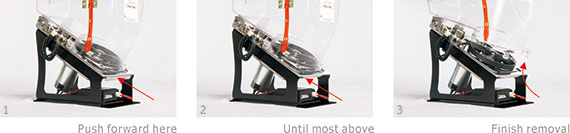

Easy Remove

FEATURES
ˇ´The only compact style hopper available for dispensing very large coins. Handle the large $1(39mm) casino type of token.
ˇ´Reliability proven in the most demanding environments.
ˇ´Easy Removal Coin Cup, cleaning and troubleshooting simple
ˇ´Specified by many of the world's leading manufacturers.
ˇ´100% no coins remaining
ˇ´Coin Storage quantity sensing by Metal Probe and Wire.
ˇ´DC Controller : When the motor exceeds a set current, Controller will start the motor reversal for troubleshooting. After consecutive reversal four times will stop all actions null and void.

DOCUMENT DOWNLOAD
Download Technical Specification PDF file

ACCESSORIES
Part Name Part Statement Download
Model PS-1 Proximity Sensor
Model DH-2 DC Control Pack
OPTIONAL PARTS
Model DH-1 RS232
Model DH-1 USB
Computer Control
Coin Cup Extension Increase the capacity of coins
ˇ@
SAFETY STANDARDS
Applicable Standards Certification Body Standards File No.
EN 55014-1+A1
EN 61000-3-2
EN 61000-3-3+A1
EN 55014-2+A1
HomeTek Technology Inc. EB2G005
FCC RULES
CISPR 22
FCC / ANSI C63.4
HomeTek Technology Inc. FA2G005
2002/95/EC RoHS SGS TAIWAN LIMITED KA/2006/B1267

OTHER MODELS IN THIS SERIES
  Model VHL-TK
  Model VHL-2TK
  Model VHL-3TK
  Model VHL-4TK
  Model VHL-5TK
