ˇ´The new design of Slide track, applicable for many kinds size coin.
ˇ´Allow motor reversal for Solve block.

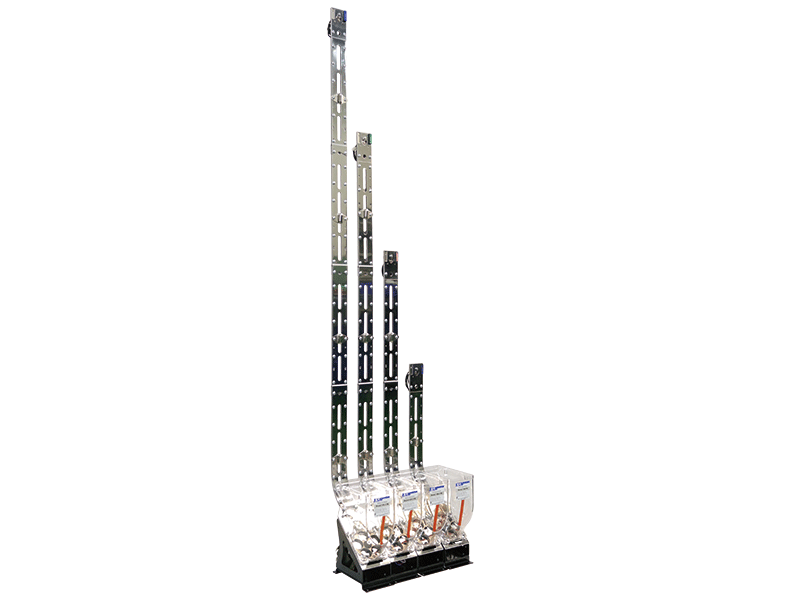

ˇ´4 standard escalator heights with optional left, right, or
perpendicular exits
ˇ´Customized versions available for specific requirements
ˇ´Customize Escalator Heights for the OEM Customers
ˇ´100% No Coin Remained
ˇ´Stable disk rotation
ˇ´DC Controller : When the motor exceeds a set current, Controller
will start the motor reversal for troubleshooting. After consecutive
reversal four times will stop all actions null and void.
DOCUMENT DOWNLOAD
Download
Technical Specification PDF file
ACCESSORIES
Part
Name
Part
Statement
Download
Model
PS-2
Proximity Sensor
Model DH-2
DC Control Pack
OPTIONAL PARTS
Model
DH-1 RS232
Model
DH-1 USB
Computer Control
Coin
Cup Extension
Increase the capacity of coins
Coin Overflow Electric Wire
ˇ@
SAFETY STANDARDS
Applicable Standards
Certification Body
Standards File No.
EN 55014-1+A1
EN 61000-3-2
EN 61000-3-3+A1
EN 55014-2+A1
