ˇ´The new design of Slide track, applicable for many kinds size coin
ˇ´Ideal for large coin applications where the payout point needs to
be higher than the hopper bowl

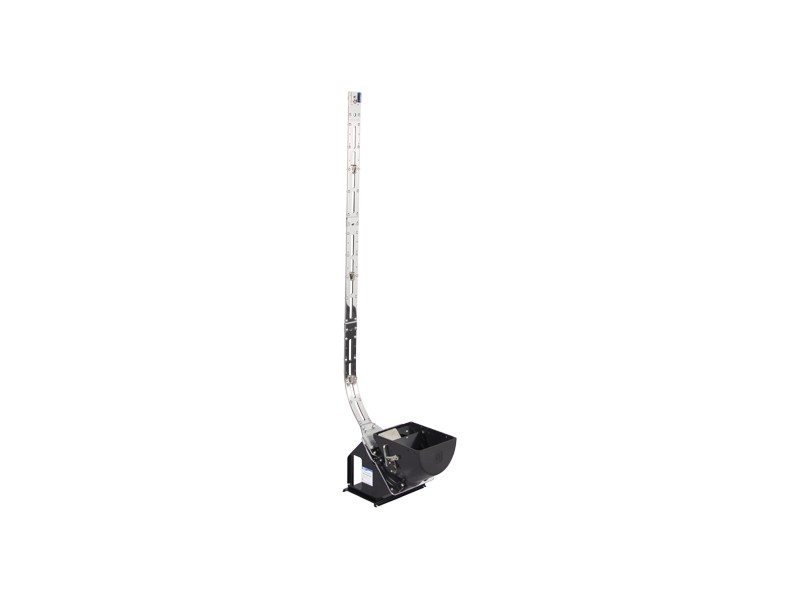

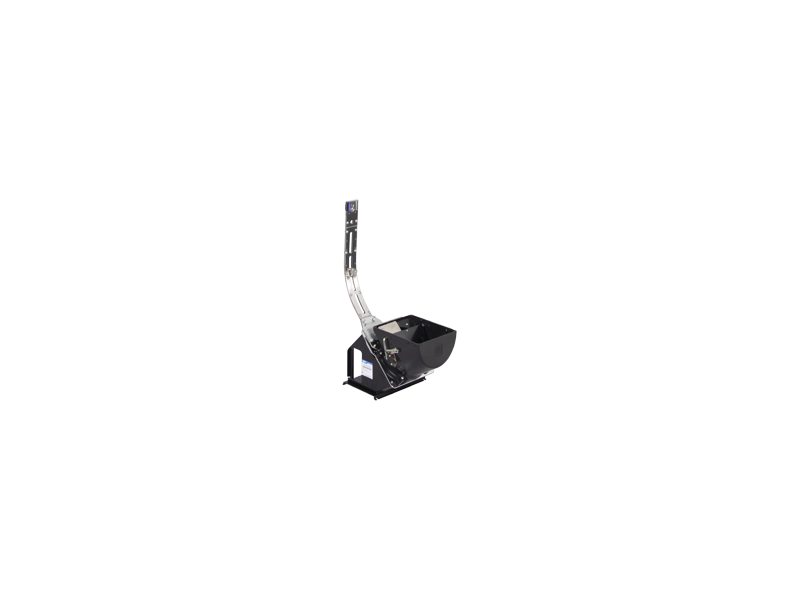

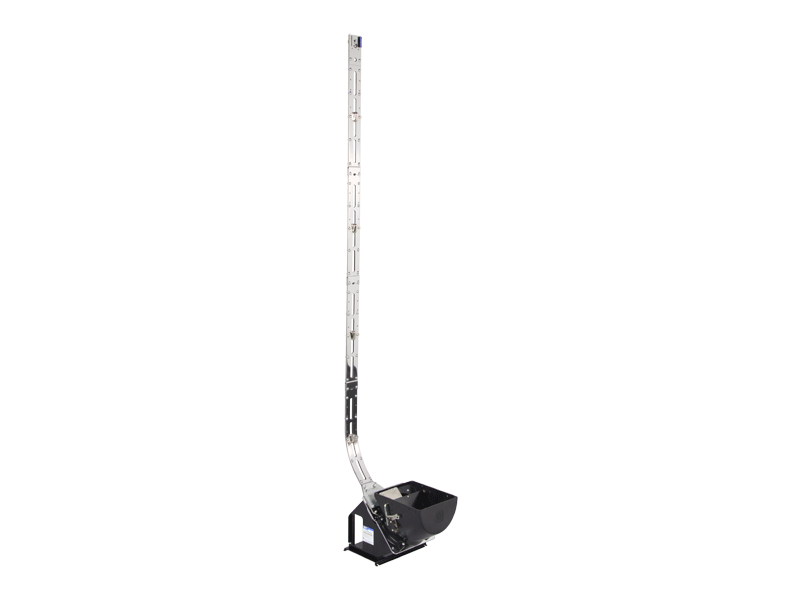

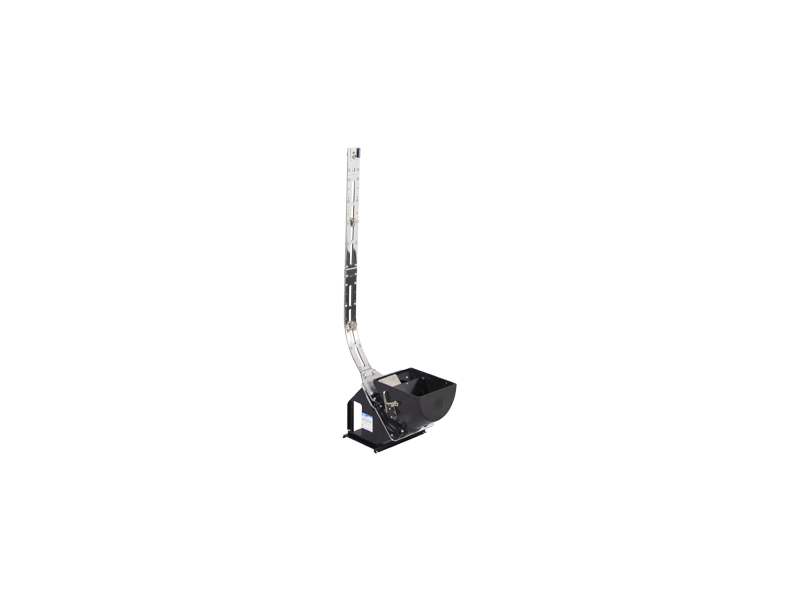

ˇ´4 standard escalator heights with optional left, right, or
perpendicular exits
ˇ´Customized versions available for specific requirements
ˇ´Special length escalators, modified hopper bowls and custom wiring
harnesses available on request
ˇ´Highest payout speed of any casino hopper
ˇ´Stable disk rotation
ˇ´Coin overflow and low level sensing by switch or line
ˇ´DC Controller : When the motor exceeds a set current, Controller
will start the motor reversal for troubleshooting. After consecutive
reversal four times will stop all actions null and void.
DOCUMENT DOWNLOAD
Download
Technical Specification PDF file
ACCESSORIES
Part
Name
Part
Statement
Download
Model
PS-2
Proximity Sensor
Model DH-2
DC Control Pack
OPTIONAL PARTS
Model
DH-1 RS232
Model
DH-1 USB
Computer Control
Coin Cup
Extension
Increase the capacity of
coins
Model QS-1
ˇ@
SAFETY STANDARDS
Applicable Standards
Certification Body
Standards File No.
EN 55014-1+A1
EN 61000-3-2
EN 61000-3-3+A1
EN 55014-2+A1
